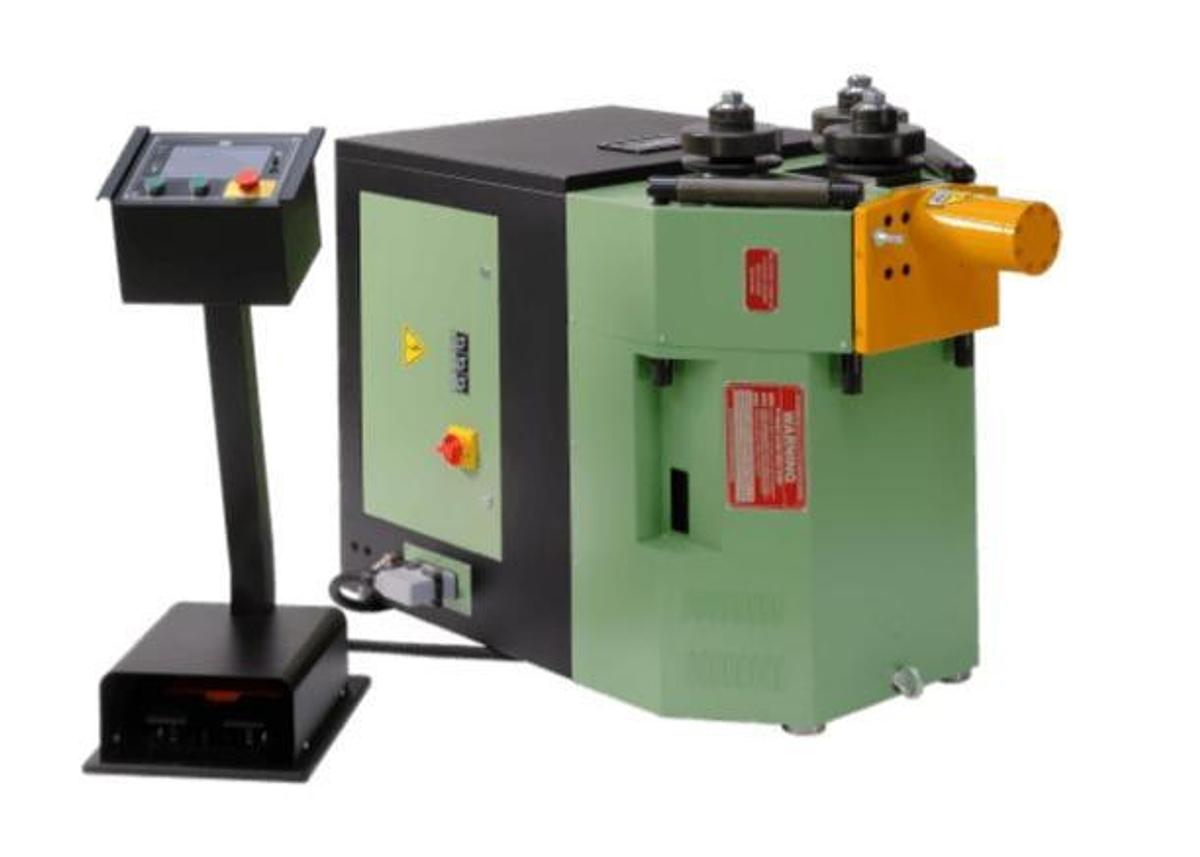

BPR CPH40 Hydraulic Section Rolling Machine

Shaft dia 40mm Capacities: angle 50 x 50 x 6mm / tube 70mm dia x 1.5mm wall / solid bar 35mm / flat ( easy way ) 100 x 15mm Rolls dia 162mm Shaft speed 9rpm Motor – drive 1.5kw / pump 0.75kw Weight 530kg Set standard universal rolls, hydraulic adjustment top roll, 3 driven rolls, horizontal / vertical working positions, lateral guide rolls, forward / reverse footpedal, Electronic control panel MPR40 with functions capable of showing and storing up to 20 bending programs (also by autoteaching) each containing 20 steps (bending roll stop points).
