Description
Standard rolls, horizontal / vertical working positions, forward / reverse footpedal, hydraulic adjustment top roll, 3 driven shafts, lateral guide rollers, DRO for depth of top roll with ‘presets’, set angle iron guide rolls

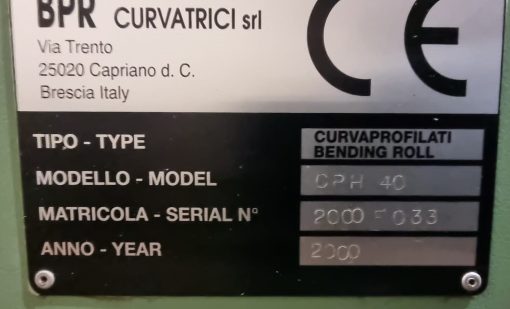

BPR CPH40 Hydraulic Section Roller
POA
Shaft dia 40mm
Rolls dia 162mm
Shaft rotation 9rpm
Motor main 1.5kw / pump 0.75kw
Weight 530kg
Capacities: Angle 50 x 6mm, flat bar – on edge 60 x 10mm / on face 100 x 15mm, round / square bar 35mm, box section 50 x 3mm, GAS 2″, round tube 70 x 1.5mm
